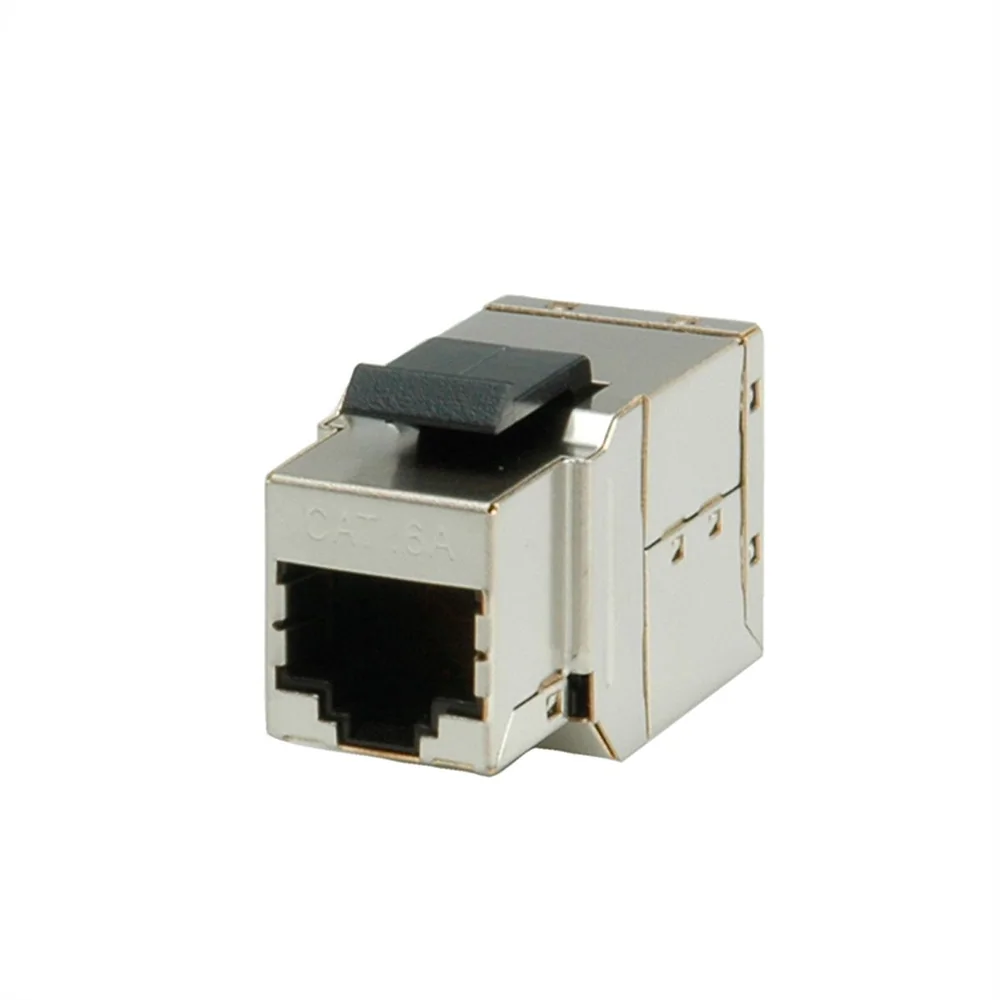

ROLINE Cat.6A (Class EA) Keystone Modular Coupler, STP
- Item number
- 21.17.3006-20
- Part number
- 21.17.3006
- EAN
- 7611990995653
- Brand
- ROLINE
- Weight
- 13.2 g
The shielded RJ-45 couplers are able to extend Twisted Pair Cat.6a cables Best transmission characteristics for pair combination 1/2 and 3/6 (as used by all Ethernet versions) Whole Housing of metal to safe the signals…
This product is not sold online — send an enquiry and we will reply with price and lead time.
Request a quoteDescription
- The shielded RJ-45 couplers are able to extend Twisted Pair Cat.6a cables
- Best transmission characteristics for pair combination 1/2 and 3/6 (as used by all Ethernet versions)
- Whole Housing of metal to safe the signals against electrical and magnetical interferences
- 8 contacts, 1:1 connected
Specifications
Product
- Manufacturer
- ROLINE
- Product group
- Connection technology TP
- Product type
- RJ-45 coupling
- Colour
- silver
- Shield type
- Screened
- Transfer quality
- Cat6A / Class EA
- Quantity of ports
- 1
- Assignment
- EIA/TIA 568A
- Material (casing)
- metal
- Shield contacts
- yes
- separate strain relief
- no
- Connection direction
- Straight
- Technical particularity
- 1 : 1 connected
- Height
- 25 mm
- Width
- 17.4 mm
- Depth
- 36 mm
- Weight
- 13.2 g
Packaging
- Height of packaging (single piece)
- 10 mm
- Width of packaging (single piece)
- 90 mm
- Depth of packaging (single piece)
- 120 mm
- Package weight (single piece)
- 0.01 kg
