ROLINE Cat.6 (Class E) 19" Patch Panel, 24 Ports, UTP, grey

Item number: 26.11.0355-3
Part number: 26.11.0355
EAN: 7611990956517
Brand: ROLINE
Weight: 874.3 g

The ROLINE Cat.6/Class E 19" patch panel fulfils the Cat.6/Class E Permanent Link Standard and is ideal for Gigabit Ethernet networks Cable assembly takes place using LSA-plus piercing terminals with colour coding on…

Compare

Description

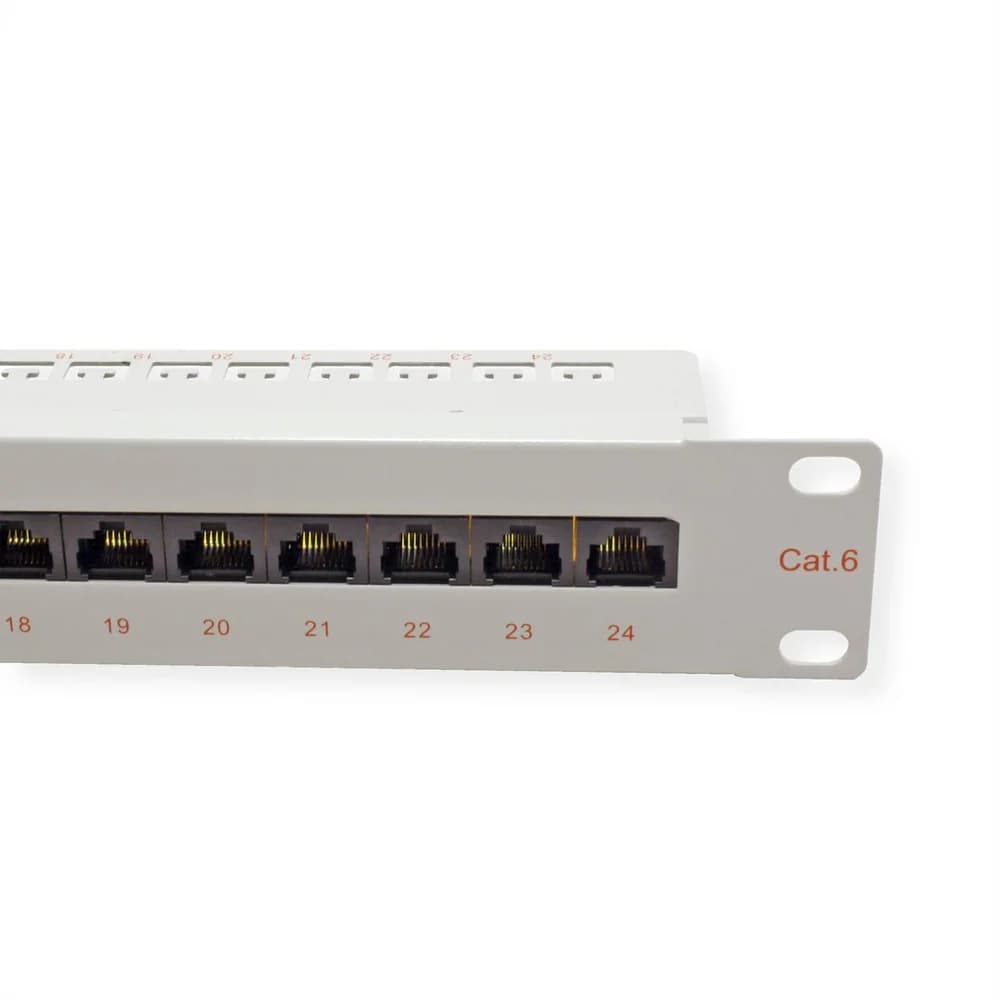

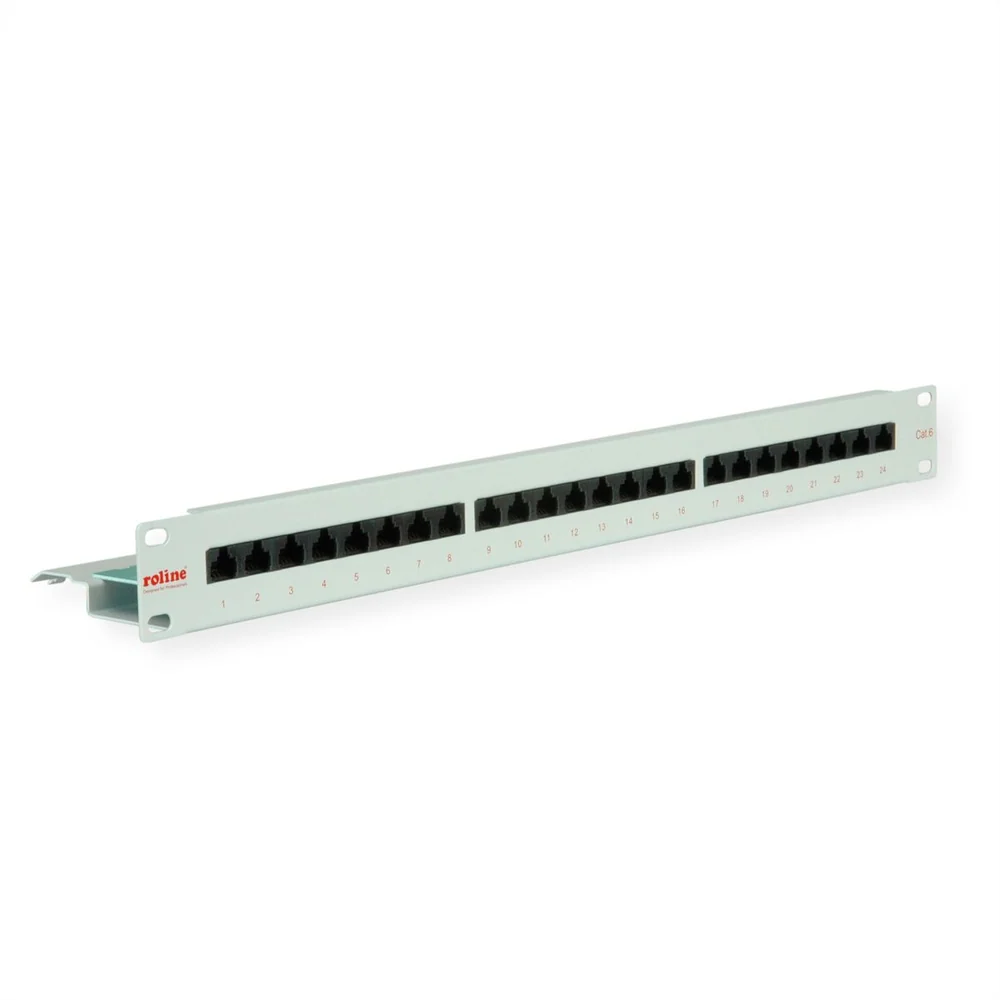

The ROLINE Cat.6/Class E 19" patch panel fulfils the Cat.6/Class E Permanent Link Standard and is ideal for Gigabit Ethernet networks

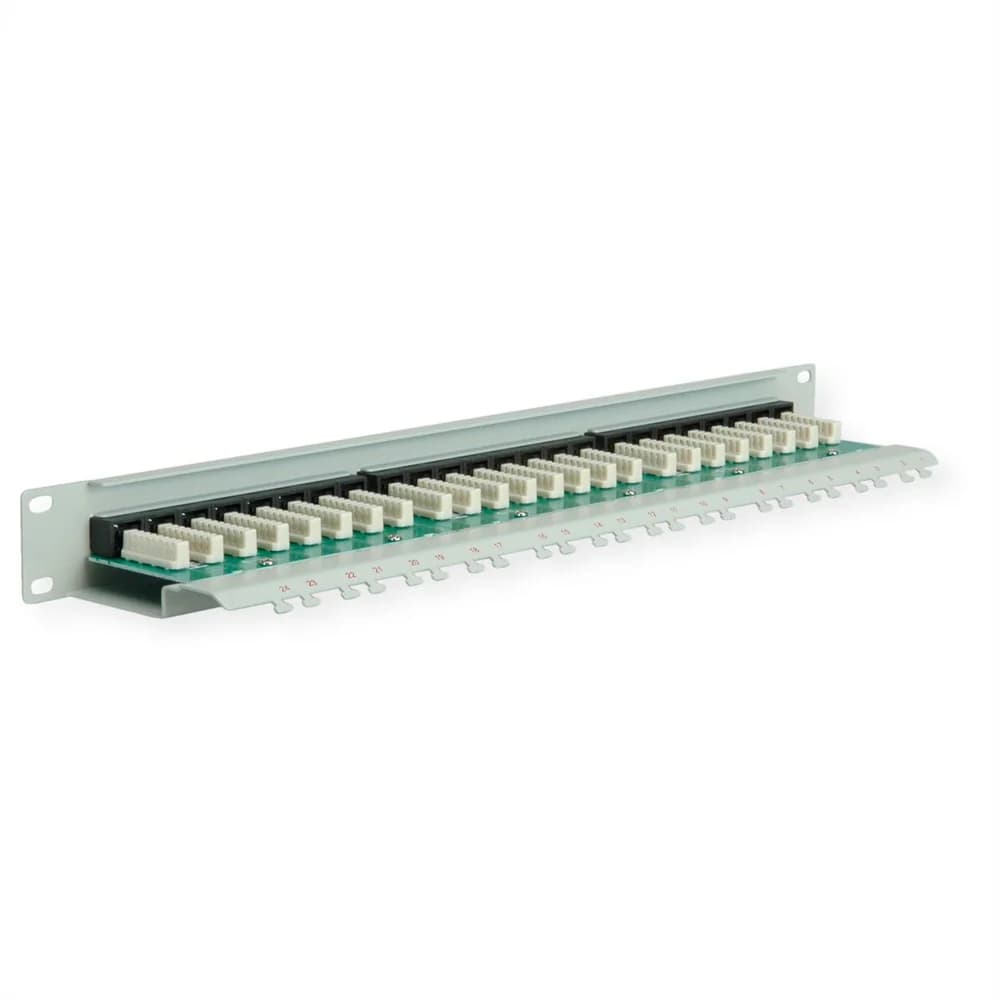

Cable assembly takes place using LSA-plus piercing terminals with colour coding on the top in accordance with EIA/TIA 568
24 ports
Colour: Light grey

For a structured cabling system we recommend to use the following components:

ROLINE Cat.6 UTP Cable, Solid Wire, AWG23: 21.15.0990 (100 m), 21.15.0991 (300 m)
ROLINE Cat.6 Flush Mount Wall Jack, unshielded: 25.16.8494 (white), 25.16.8500 (ivory)
ROLINE Cat.6 Surface Mount Wall Jack, unshielded: 25.16.8394 (white), 25.16.8395 (ivory)
ROLINE Cat.6 19" Patch Panel, 24 Ports, unshielded: 26.11.0355 (light grey), 26.11.0362 (black)
ROLINE Cat.6 UTP Patch Cord, grey, 5 m: 21.15.0935

Our in-house laboratory has tested this cable-plug combination, in a Channel of 100 meters, in compliance with Class E specifications.

Specifications

Product

Manufacturer: ROLINE
Product group: Connection technology TP
Product type: Patchpanel Cat.6 / Class E
Colour: grey
Shield type: Not screened
Transfer quality: Cat6 / Class E
Cabinet system: 19"-Technique
Quantity of ports: 24
Assembly cable connection: Krone LSAplus
Assignment: EIA/TIA 568A & 568B
Modular assembly: no
Shield contacts: No
separate strain relief: yes
Connection direction: Straight
Height units: 1 U
Height: 44 mm
Width: 482.6 mm
Depth: 109 mm
Weight: 874.3 g

Packaging

Height of packaging (single piece): 80 mm
Width of packaging (single piece): 150 mm
Depth of packaging (single piece): 490 mm
Package weight (single piece): 2.2 kg
