ROLINE Cat.5e (Class D) Wall Mount Patch Panel, 8 Ports, STP, black
- Item number
- 26.11.0310-10
- Part number
- 26.11.0310
- EAN
- 7611990947744
- Brand
- ROLINE
- Weight
- 623.6 g
The ROLINE connection takes place using LSA plus cable clamps marked with the appropiate colour coding EIA / TIA 568A specifications. The screen connection and strain relief takes place using metallic cable clips. The…
Description

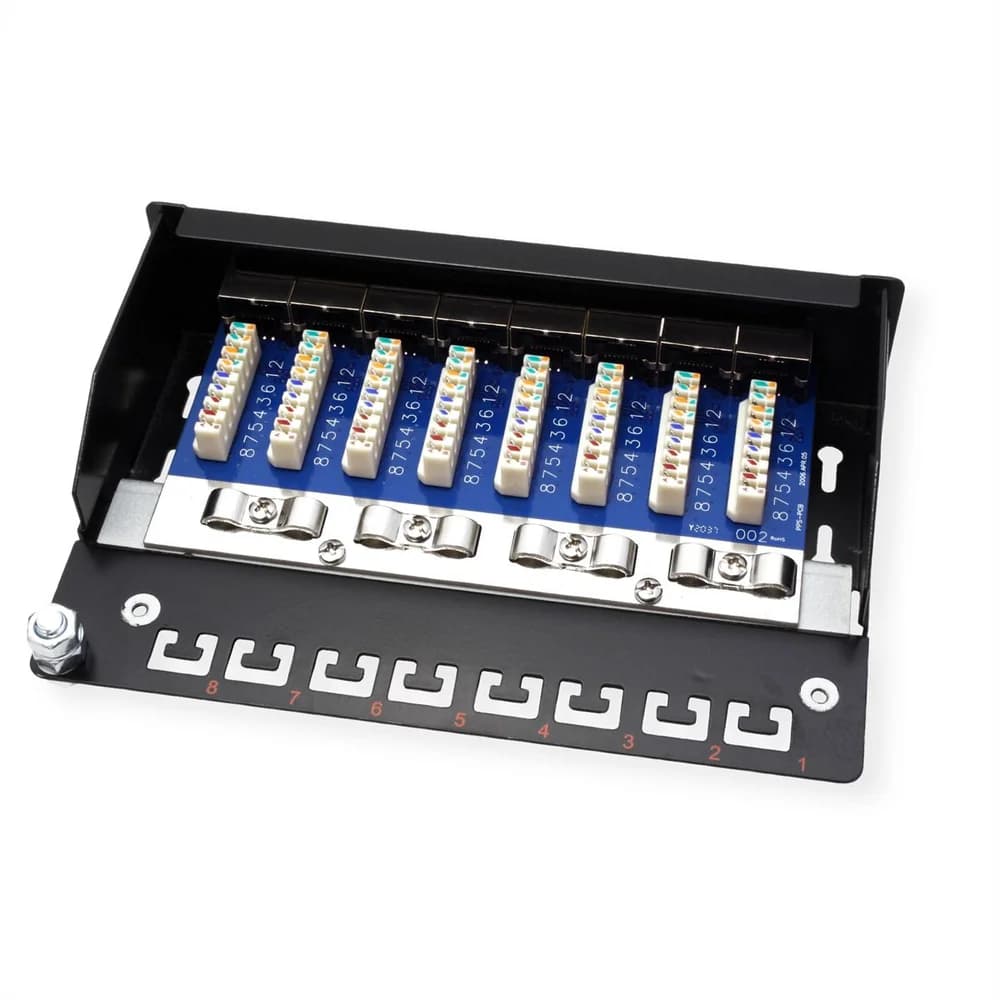

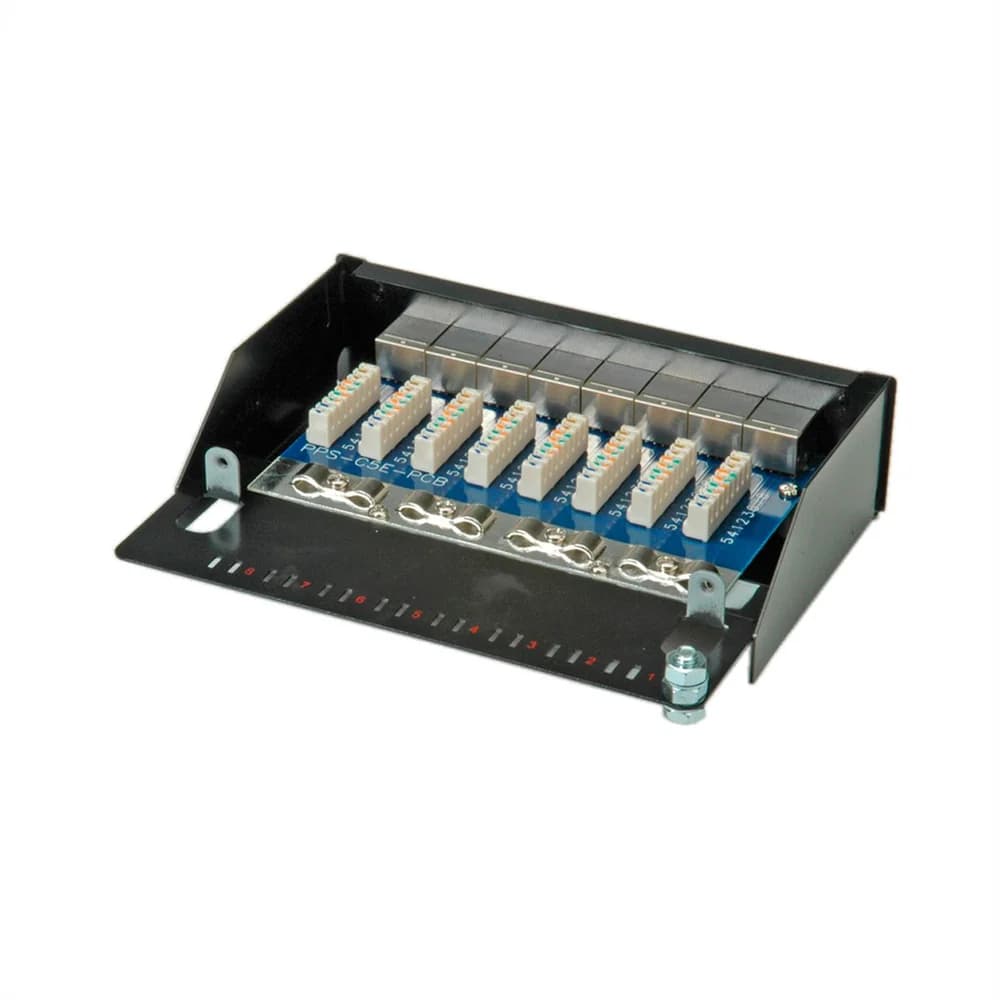

- The ROLINE connection takes place using LSA plus cable clamps marked with the appropiate colour coding EIA / TIA 568A specifications. The screen connection and strain relief takes place using metallic cable clips.
- The cable connection takes place using LSA plus cable clamps marked with the appropiate colour coding EIA / TIA 568A specifications. The screen connection and strain relief takes place using metallic cable clips
- Housing and dust cover: metal
- Colour: black
Specifications
Product
- Manufacturer
- ROLINE
- Product group
- Connection technology TP
- Product type
- Patchpanel Cat.5e
- Colour
- black
- Scope of delivery
- 1x patch panel, cable ties, installation instructions
- Shield type
- Screened
- Transfer quality
- Cat5e / Class D
- Quantity of ports
- 8
- Assembly cable connection
- Krone LSAplus
- Assignment
- EIA/TIA 568A & 568B
- Modular assembly
- no
- Shield contacts
- Yes
- separate strain relief
- yes
- Connection direction
- Straight
- Dimensions (HxWxD)
- 44 x 172 x 140 mm
- Assembly depth
- 140 mm
- Height units
- 1 U
- Technical particularity

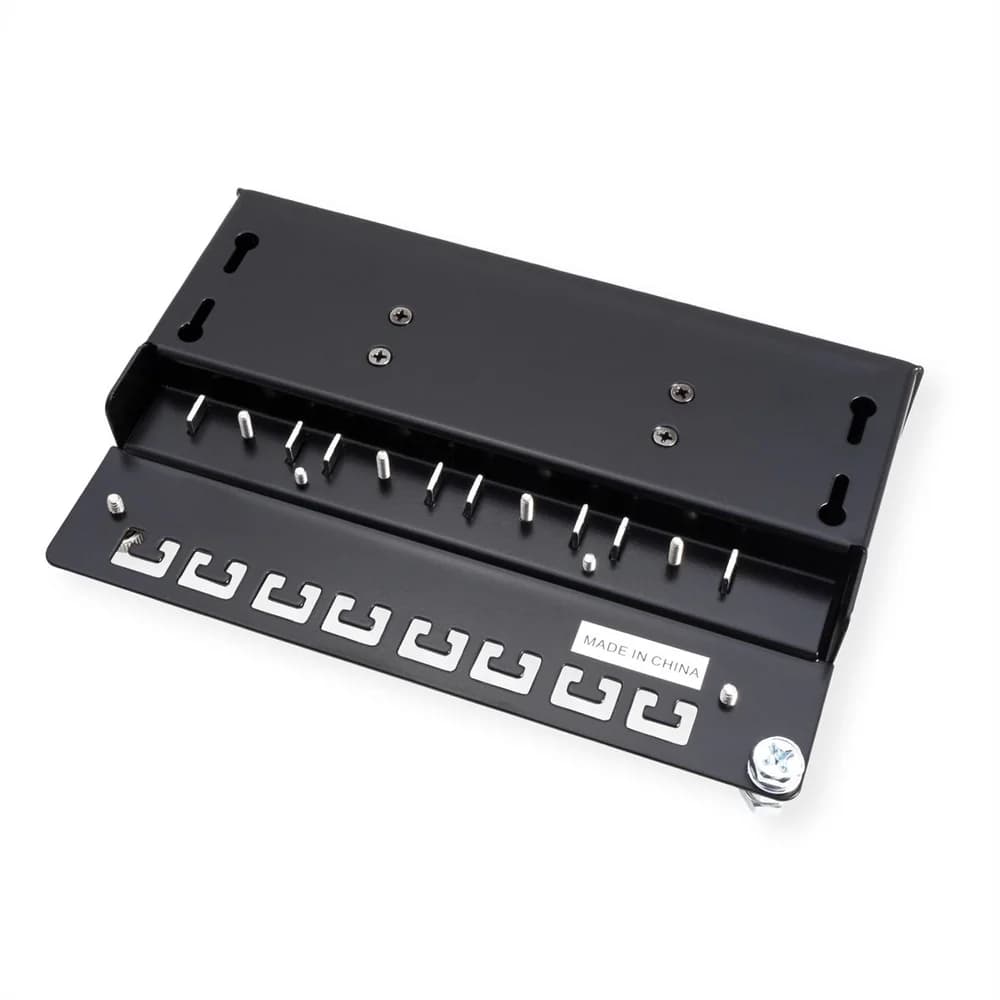

- Wall mount
- Height
- 44 mm
- Width
- 172 mm
- Depth
- 140 mm
- Weight
- 623.6 g
Packaging
- Height of packaging (single piece)
- 50 mm
- Width of packaging (single piece)
- 240 mm
- Depth of packaging (single piece)
- 320 mm
- Package weight (single piece)
- 0.95 kg
