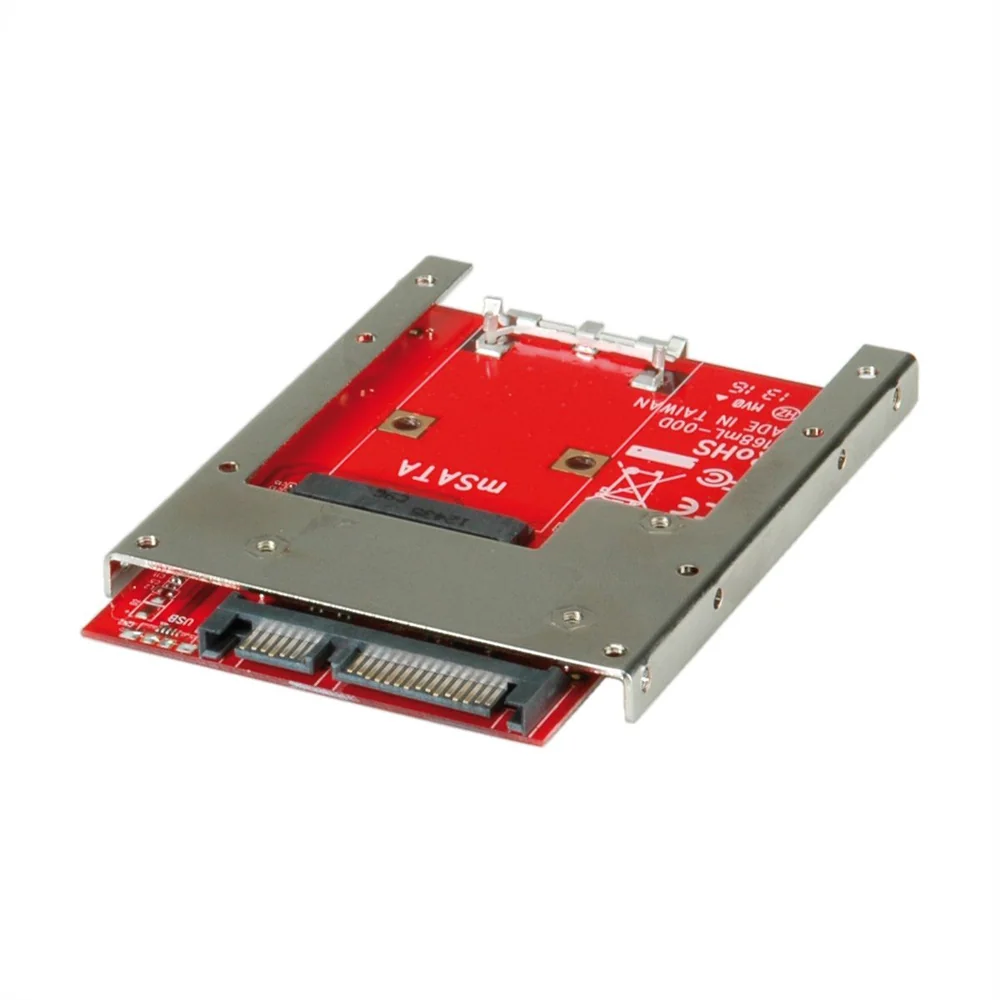

ROLINE Adapter, mSATA SSD to 2.5 SATA 22pin
- Item number
- 11.03.1567-10
- Part number
- 11.03.1567
- EAN
- 7611990928149
- Brand
- ROLINE
- Weight
- 48.3 g
Best Solution that convert and easily retain mSATA SSD as normally standard 2.5 SATA SSD Convert Full Size mSATA SSD to 2.5 Form Factor Supports up to SATA 6Gb/s Compatible with 2.5 SATA drive mechanical specifications…
Description
Best Solution that convert and easily retain mSATA SSD as normally standard 2.5 SATA SSD
- Convert Full Size mSATA SSD to 2.5 Form Factor
- Supports up to SATA 6Gb/s
- Compatible with 2.5 SATA drive mechanical specifications
- 22 pin SATA (signals and power) male connector on board
- Transparent to the operating system and no driver required
- Latch mSATA connector on board, no need the screw for the retention of mSATA module
Specifications
Product
- Manufacturer
- ROLINE
- Product group
- Cable
- Product type
- SATA-Adapter
- Colour
- red
- Scope of delivery
- adapter, 2.5 drive metal frame (with 8 mounting holes and 4 HDD screws), manual
- Connection ports
- SATA 22-pin (Data+Power) Male / Micro SATA 16-pin Male
- Side 1 Connector Type
- SATA 22-pin (Data+Power)
- Side 1 Connector Gender
- Male
- Side 2 Connector Type
- Micro SATA 16-pin
- Side 2 Connector Gender
- Male
- Area of application
- Internal
- Hand locking screws
- no
- Height
- 7 mm
- Width
- 69.85 mm
- Depth
- 100.45 mm
- Weight
- 48.3 g
Packaging
- Height of packaging (single piece)
- 50 mm
- Width of packaging (single piece)
- 160 mm
- Depth of packaging (single piece)
- 220 mm
- Package weight (single piece)
- 0.1 kg
