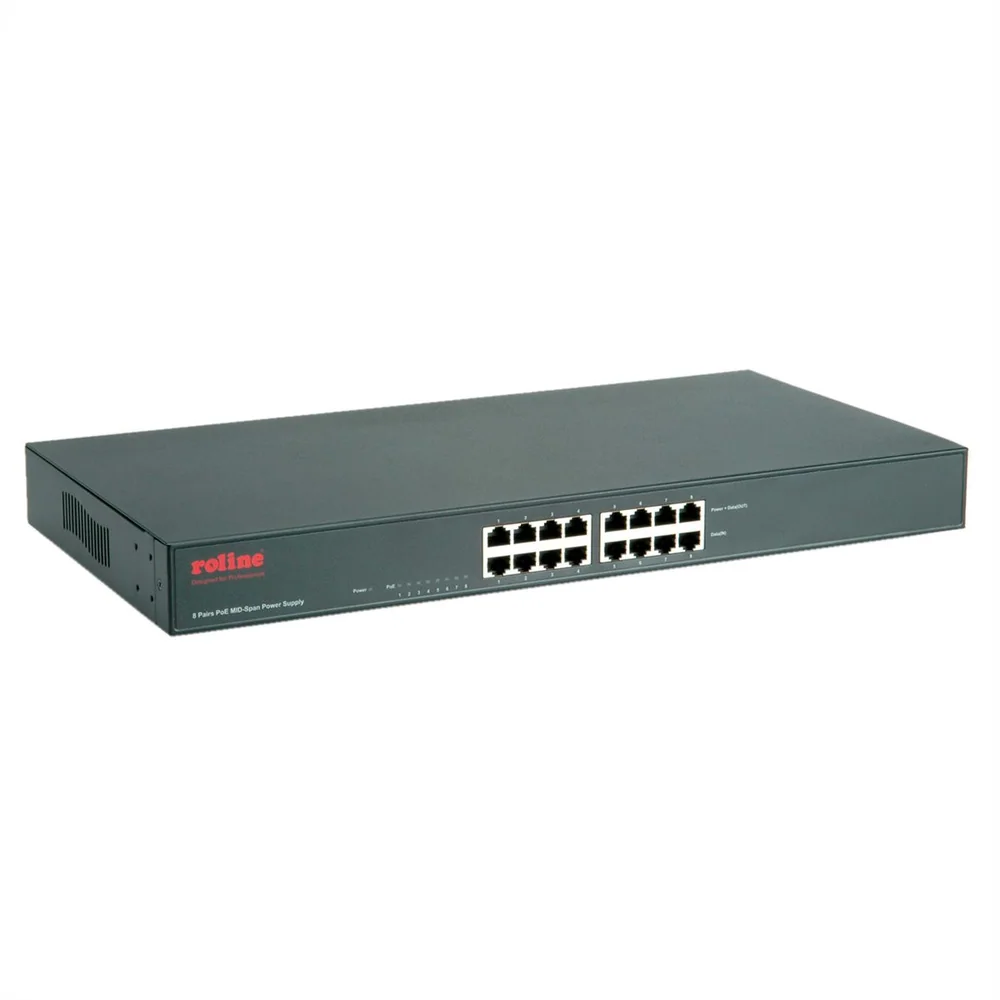

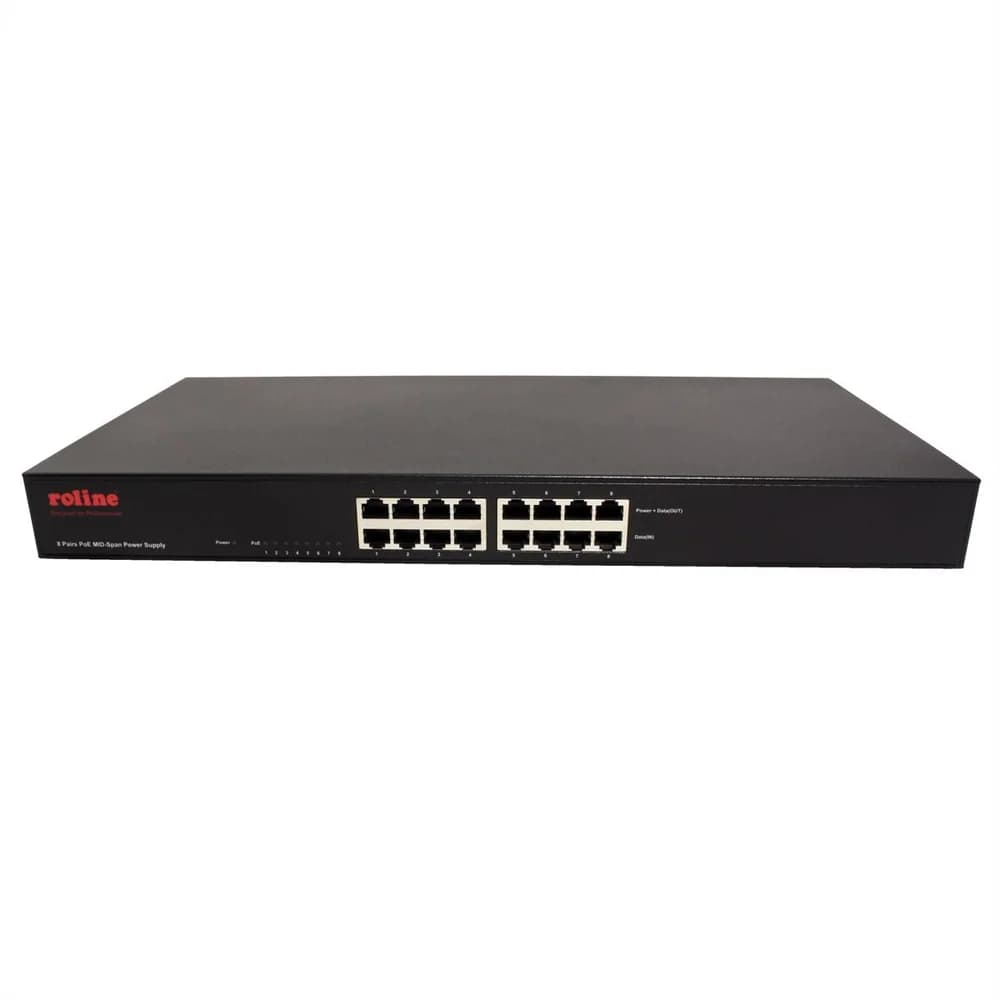

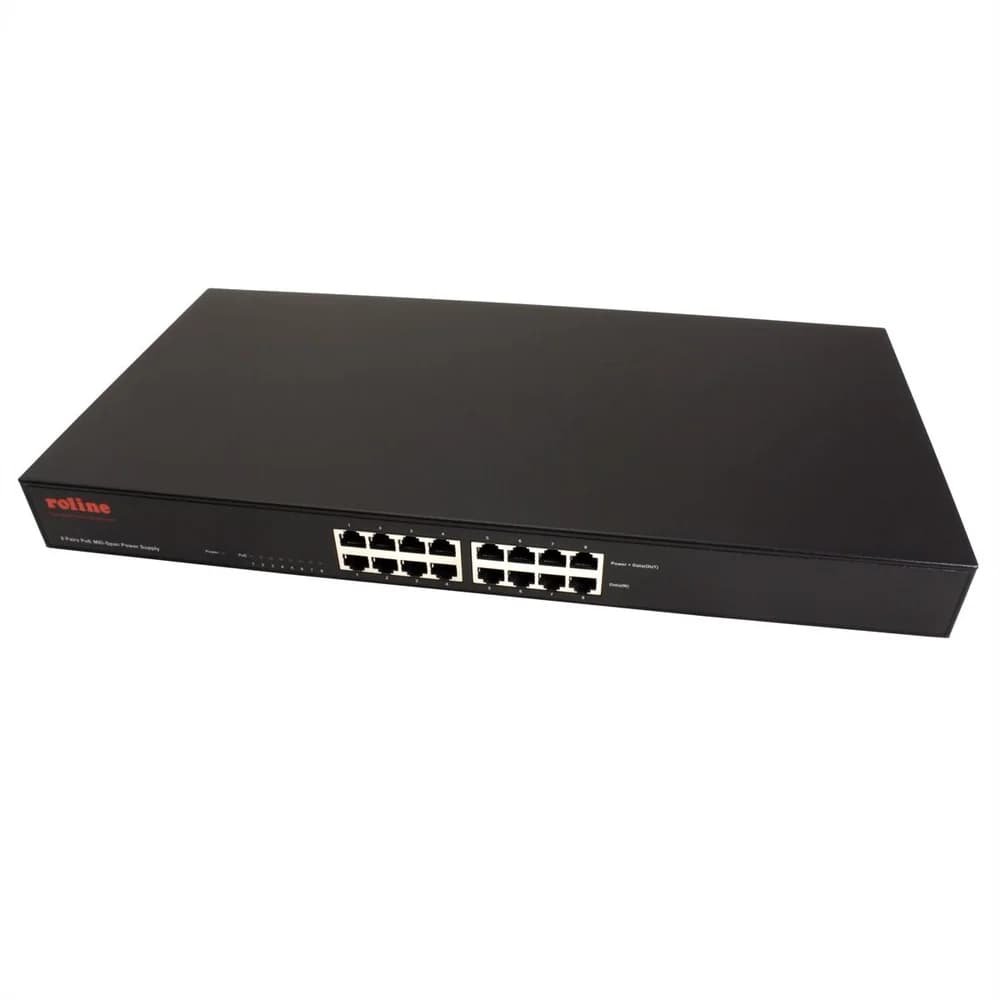

ROLINE 19" PoE MID-Span Power Supply, 8 Midspanports
- Item number
- 21.13.1181-1
- Part number
- 21.13.1181
- EAN
- 7611990998692
- Brand
- ROLINE
- Weight
- 2700 g
8-way injector that supplies IEEE 802.3af Power over Ethernet (PoE) compliant network accessories like e. g. workgroup switches, network cameras, access points, IP-phones with data and power over one LAN cable. Data-in…
Description

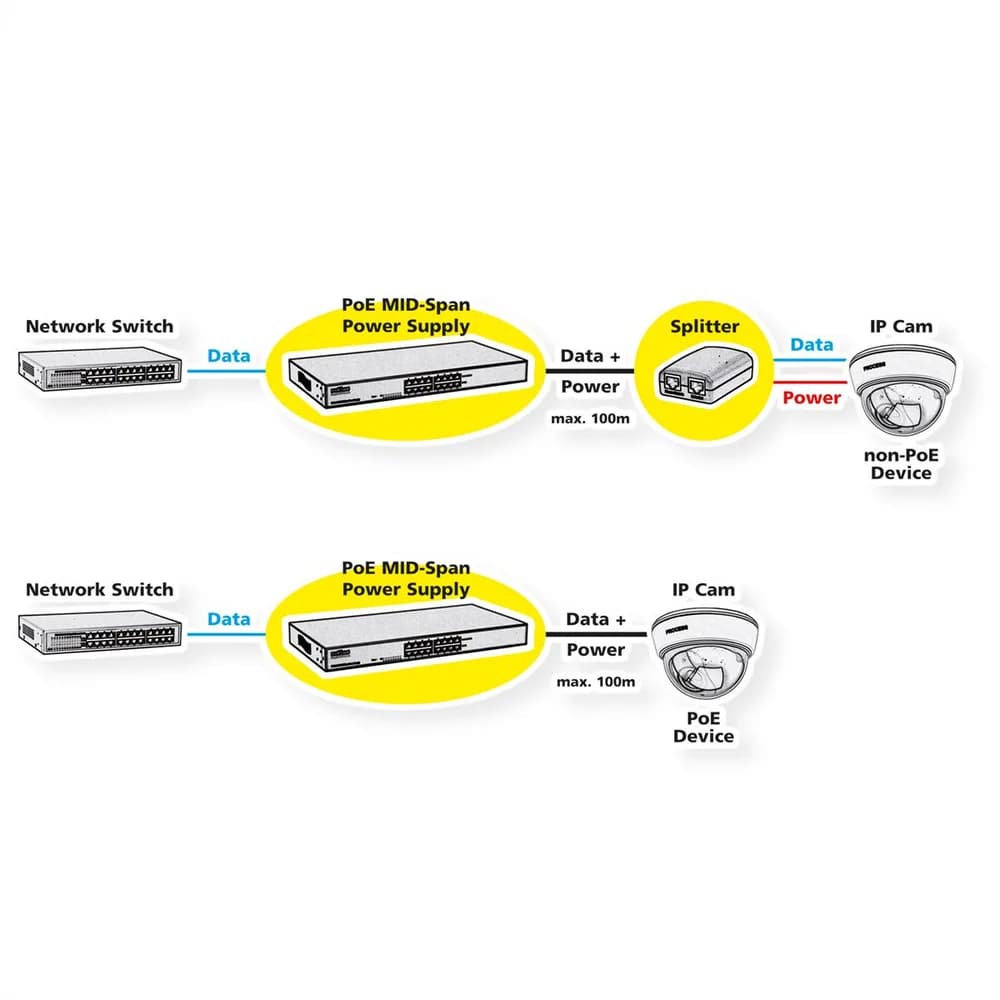

8-way injector that supplies IEEE 802.3af Power over Ethernet (PoE) compliant network accessories like e. g. workgroup switches, network cameras, access points, IP-phones with data and power over one LAN cable.
- Data-in Ports: 8x 10/100BaseTX, Data + Power-out Ports: 8x 10/100BaseTX
- Standards: IEEE 802.3 10BaseT , IEEE 802.3u 100BaseTX, IEEE 802.3x Flow Control, IEEE 802.3af PoE
- Max. power output: 48 VDC / 15.4 W per port
- PoE capable ports: Port 1-8 up to 15.4 W per port
- PoE power budget: 110 W
- Max. power consumption (without PoE): 122 W (12 W)
- Status LEDs
- Metal casing, 19" rack-mountable (rack-mount kit included)

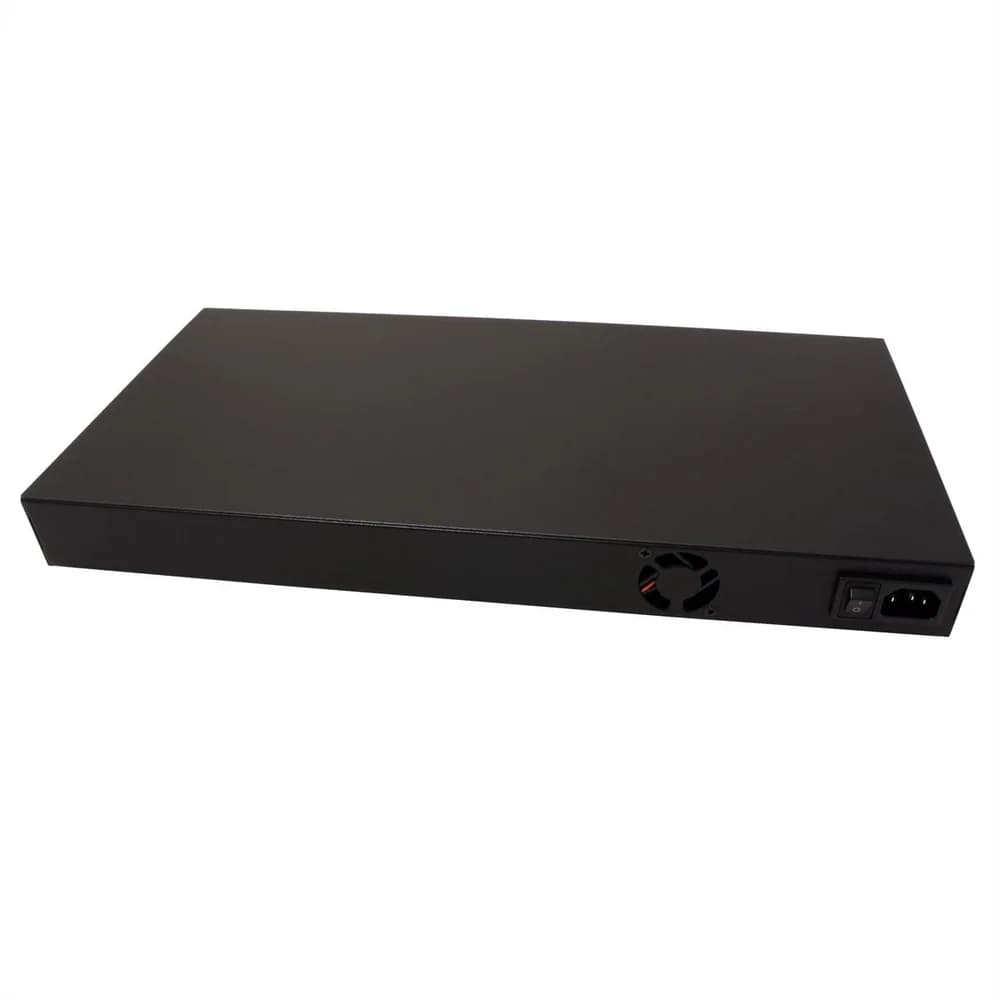

- Active cooling with integrated fan
- Internal power supply
- Dimensions (WxDxH): 440 x 220 x 44 mm
- Contents: Switch, power cord, rack mount kit, manual
Specifications
Product
- Manufacturer
- ROLINE
- Product group
- PoE adapter
- Product type
- PoE-Injector
- Colour
- black
- Network standard
- Fast Ethernet
- LAN (Mbps)
- 10/100
- Quantity of ports
- 8
- Power over Ethernet (PoE)
- PoE (IEEE 802.3af)
- Quantity of PoE ports
- 8
- Max. PoE output power per port
- 15.4 W
- Max. PoE output power (total)
- 110 W
- Mounting form
- 19" Rackmount
- Mounting angle
- 2
- Mains connection
- Cold appliance connection
- Height
- 44 mm
- Width
- 440 mm
- Depth
- 220 mm
- Weight
- 2.7 kg
Packaging
- Height of packaging (single piece)
- 90 mm
- Width of packaging (single piece)
- 310 mm
- Depth of packaging (single piece)
- 500 mm
- Package weight (single piece)
- 3.407 kg
