ROLINE 19-inch server rack Pro 36 U, 800x1000 WxD grey
- Item number
- 26.21.0169
- Part number
- 26.21.0169
- EAN
- 7630049601727
- Brand
- ROLINE
- Weight
- 101000 g
ROLINE 19 inch server cabinet 36 U 800x1000 WxD grey
This product is not sold online — send an enquiry and we will reply with price and lead time.
Request a quoteDescription
ROLINE 19 inch server cabinet 36 U 800x1000 WxD grey

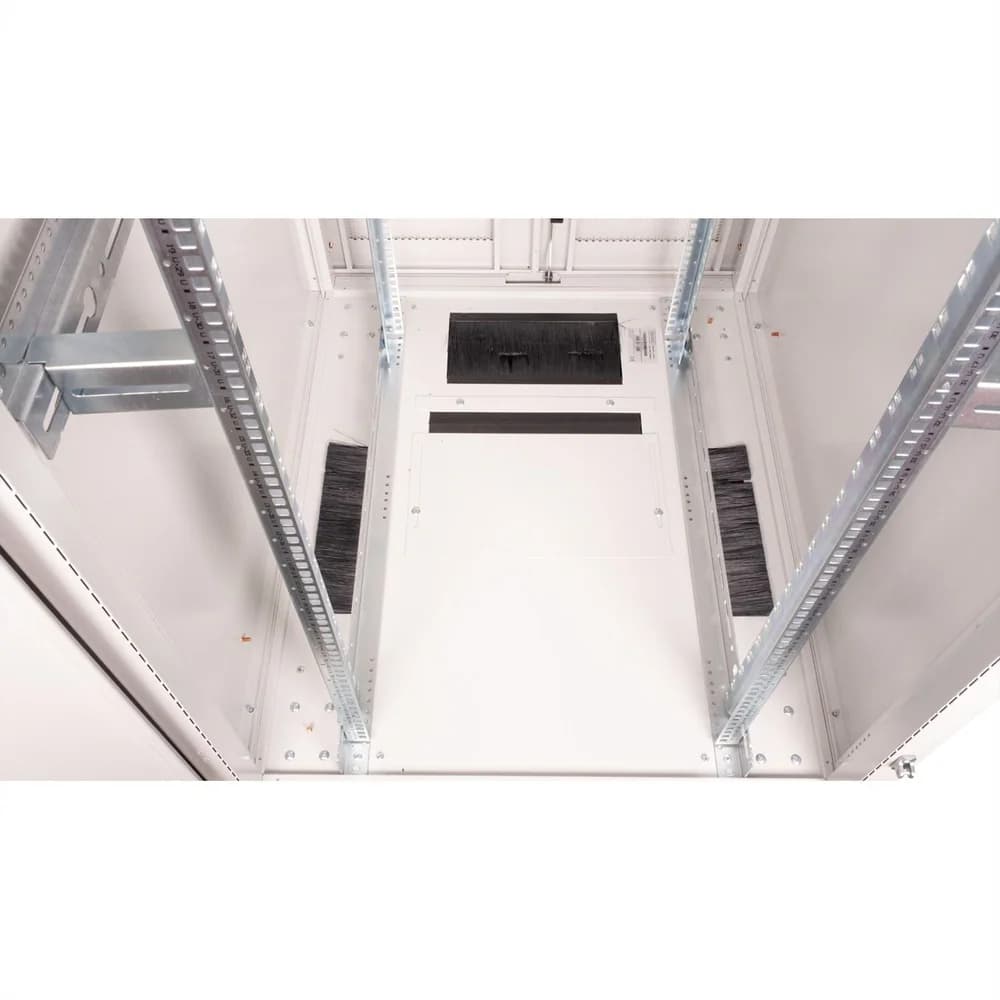

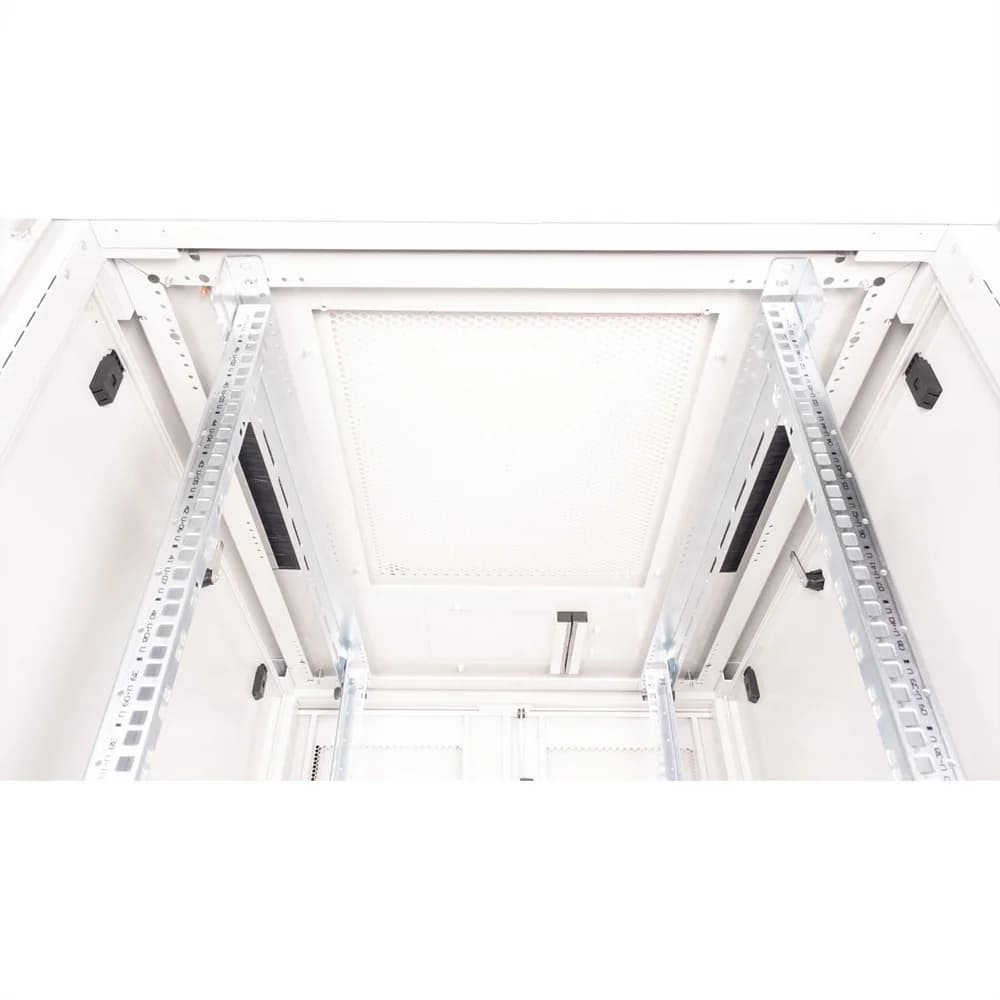

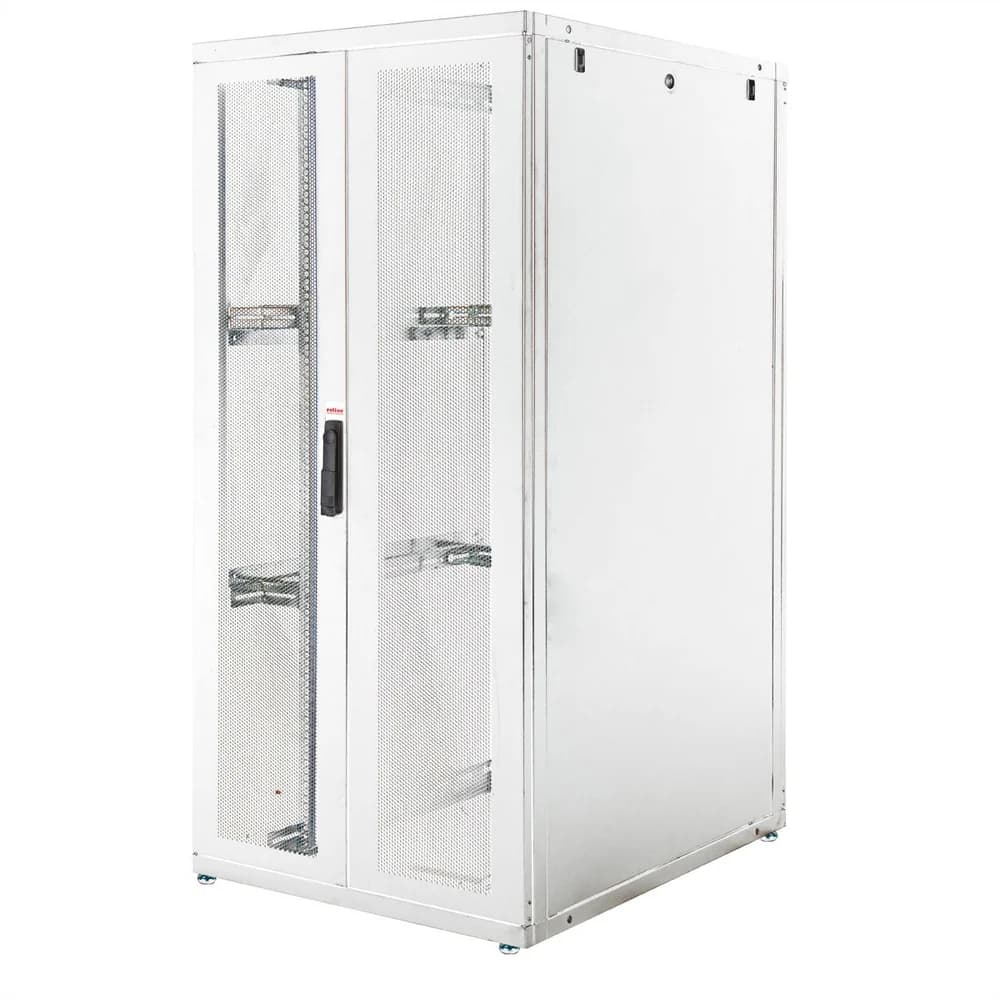

The server enclosures in the ROLINE Pro series have been specially developed for convenient and flexible network cabling. Inlets with brushes, a slide-on inlet with a foam rubber seal and an additional brush inlet in the base chassis are located on the sides of the roof and base (from 800 mm enclosure width), offering a wide range of possible applications. Perforated single-leaf front doors and double-leaf rear doors, each with a swivel handle and profile half cylinder, ensure improved air circulation. The roof has a perforated cover that allows easy installation of a fan module.
Specifications
Product
- Manufacturer
- ROLINE
- Product group
- 19"-/10"-Cabinet
- Product type
- 19"-Server cabinet
- Colour
- grey
- Scope of delivery
- 19-inch server enclosure 36 U, earthing cable set, installation kit for profile half cylinder, 2x spanners, installation set (screws, cage nuts, washers), assembly instructions
- Type of profile rail
- L-shaped
- Modular spacing
- 482.6 mm (19 inch)
- Model
- With permanent frame
- Height units
- 36 U
- Minimum rack depth supported
- 675 mm
- Maximum rack depth supported
- 810 mm
- Delivery condition
- fully assembled
- Material group
- Steel
- Material front door
- Steel
- Material rear door
- Steel
- Server cabinet
- yes
- Wall mountable
- no
- Adjustable feets
- yes
- Maximum weight capacity
- 1000 kg
- Protection class (IP Code)
- IP20
- Soundproof
- no
- Number of doors
- 2
- With front door
- yes
- With backside door
- yes
- With glazed door
- yes
- Front
- Steel door with perforation
- Backside
- Steel door with perforation
- Rack rails
- yes
- Side panels included
- yes
- Removeable side panels
- yes
- Removable front door
- yes
- Removable back door
- yes
- Ventilation
- Passive
- RAL colour
- RAL 7035 Light grey
- Height
- 1705 mm
- Width
- 800 mm
- Depth
- 1000 mm
- Weight
- 101 kg
Packaging
- Height of packaging (single piece)
- 1900 mm
- Width of packaging (single piece)
- 1040 mm
- Depth of packaging (single piece)
- 850 mm
- Package weight (single piece)
- 106.5 kg
