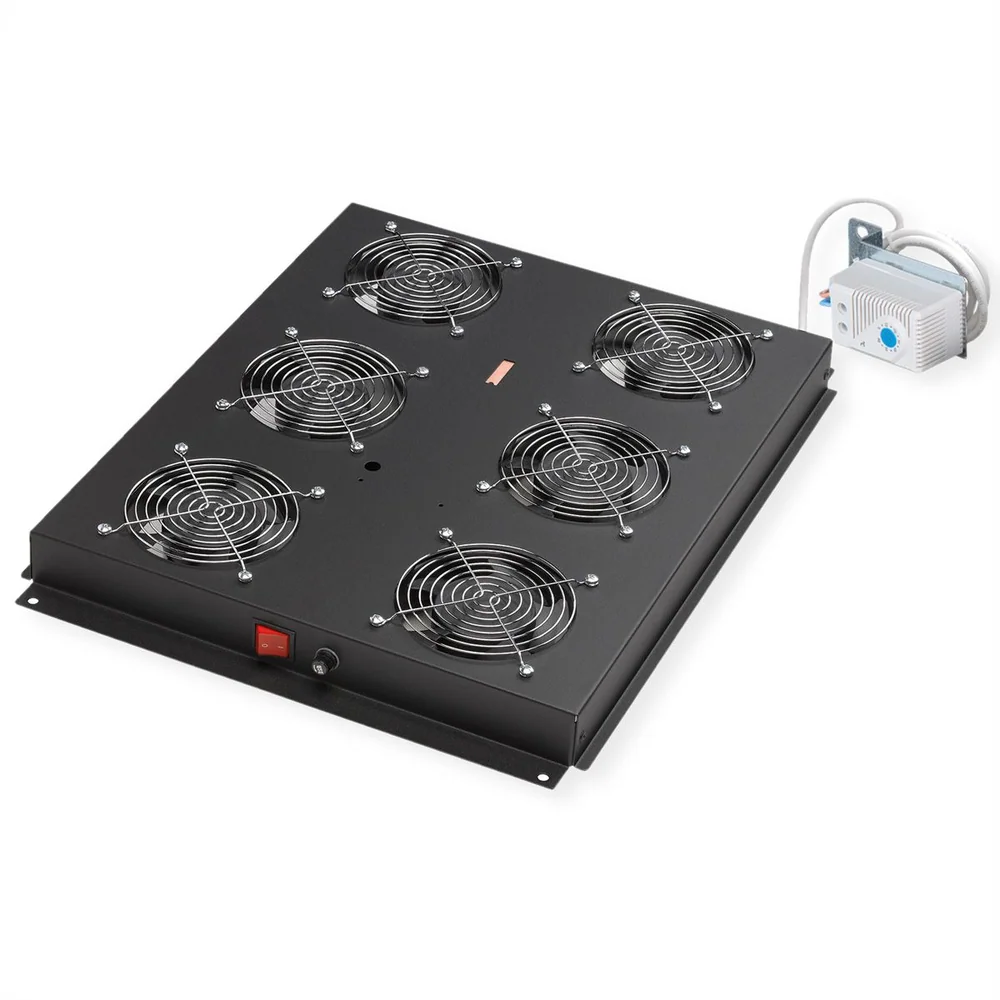

ROLINE 19-inch roof-mounted fan unit 6 fans, Thermostat black
- Item number
- 26.21.0109
- Part number
- 26.21.0109
- EAN
- 7630049601109
- Brand
- ROLINE
- Weight
- 5120 g
ROLINE 19 inch roof fan unit 6 fan thermostat black
This product is not sold online — send an enquiry and we will reply with price and lead time.
Request a quoteDescription
ROLINE 19 inch roof fan unit 6 fan thermostat black
The roof fan units can be used flexibly in any 19" enclosure. Each fan unit is supplied with two sets of mounting brackets. With the standard set, you can attach the fan unit to any height unit of your network or server enclosure. The second set enables installation in the roof of 19" network or server cabinets from the ROLINE Pro and Basic series. A switch and an adjustable thermostat offer optimum customisation options. The model is available in the standard colours grey (RAL 7035) and black (RAL 9005).
Specifications
Product
- Manufacturer
- ROLINE
- Product group
- 19"- / 10" technology
- Product type
- 19"-Cabinet ventilation
- Colour
- black
- Scope of delivery
- Roof fan unit, mounting material, power cable
- Modular spacing
- 482.6 mm (19 inch)
- Material group
- Steel
- Ventilation
- Active
- Number of integrated fans
- 6
- Fan power consumption
- per fan: 18 W ± 10%
- RAL colour
- RAL 9005 Jet black
- Mains connection
- Protective contact plug, Type-E/F
- Height
- 50 mm
- Width
- 420 mm
- Depth
- 530 mm
- Weight
- 5.12 kg
Packaging
- Height of packaging (single piece)
- 70 mm
- Width of packaging (single piece)
- 565 mm
- Depth of packaging (single piece)
- 435 mm
- Package weight (single piece)
- 5.39 kg
