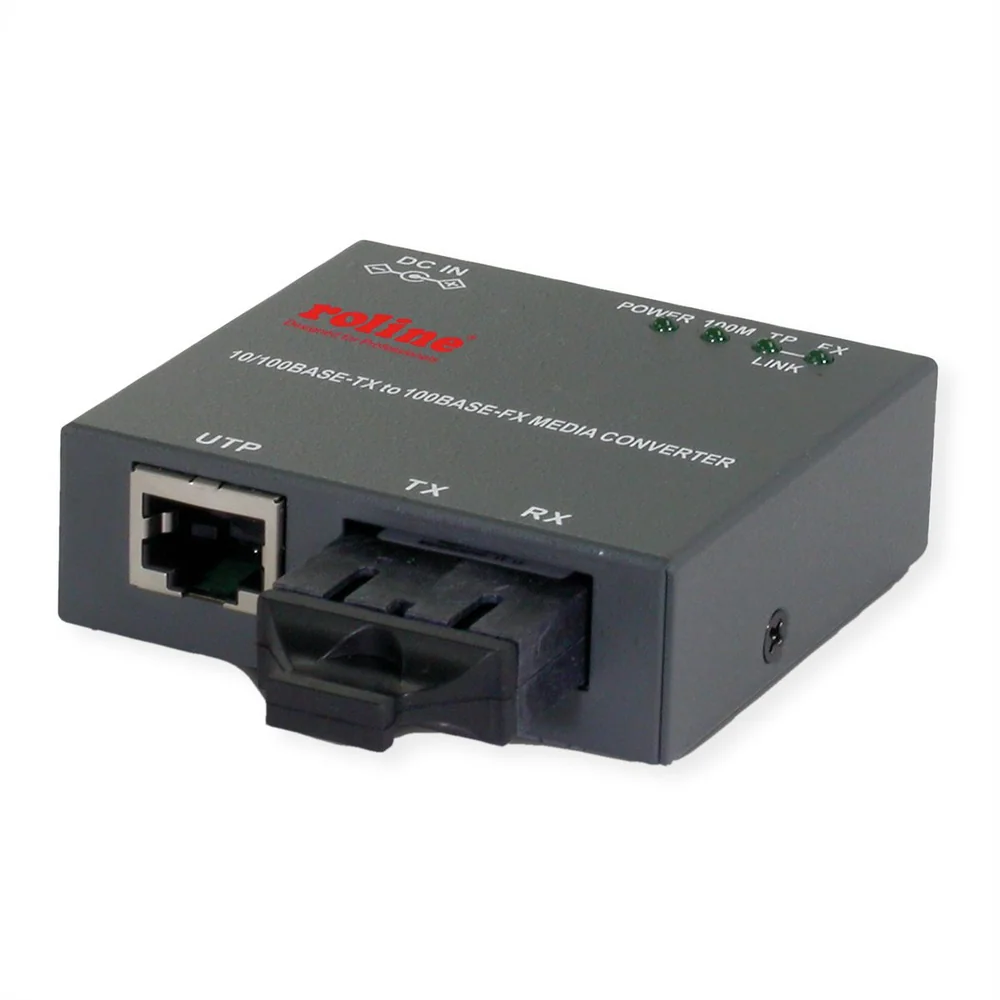

ROLINE 10/100Base-TX to 100Base-FX Media Converter
- Item number
- 21.13.1132-5
- Part number
- 21.13.1132
- EAN
- 7630049688919
- Brand
- ROLINE
- Weight
- 150 g
This converter changes a Fast Ethernet TP port (RJ45) to multimode fiber optic (SC).
This product is not sold online — send an enquiry and we will reply with price and lead time.
Request a quoteDescription
This converter changes a Fast Ethernet TP port (RJ45) to multimode fiber optic (SC).
- Supports full wire speed copper-to-fiber media conversion for 10/100Mbit/s speed and media types
- Supports auto-negotiation 10/100Mbps on the copper port
- Auto MDI/MDI-X crossover function on the copper port
- Supports IEEE 802.3x flow control
- Transparent conversion to 802.1Q VLAN tagged packets
- Provides Far End Fault function on FX (fiber) port
- Low power consumption
- Supports DIN rail mounting and wall mounting
- LEDs: Power status, TP speed, TP Link/Activity, FX Link/Activity
- Packet Size: Up to 1536 bytes
- Operating temperature.: 0 ºC - +50 ºC
- Storage Temperature: -30°C ~ 80°C
- Relative Humidity: 5% ~ 95% non-condensing
- DC Input via external power adapter
Specifications
Product
- Manufacturer
- ROLINE
- Product group
- Network converters
- Product type
- Media Converter
- Colour
- black
- Scope of delivery
- Media Converter, Power supply unit, USB power cable, Installation manual
- RJ-45 Port (Mbps/s)
- 100
- Fibre Ports (Mbps)
- 100
- Quantity of RJ45 ports
- 1
- Quantity of fibre SC ports
- 1
- Converts to
- RJ-45/SC
- Fibre
- Multi mode
- Ethernet fibre standard
- 100Base-FX
- Operating temperature min.
- 0 °C
- Operating temperature max.
- 50 °C
- Storage temperature min.
- -30 °C
- Storage temperature max.
- 80 °C
- Height
- 59 mm
- Width
- 64 mm
- Depth
- 21 mm
- Weight
- 150 g
Packaging
- Height of packaging (single piece)
- 60 mm
- Width of packaging (single piece)
- 150 mm
- Depth of packaging (single piece)
- 150 mm
- Package weight (single piece)
- 0.3 kg
