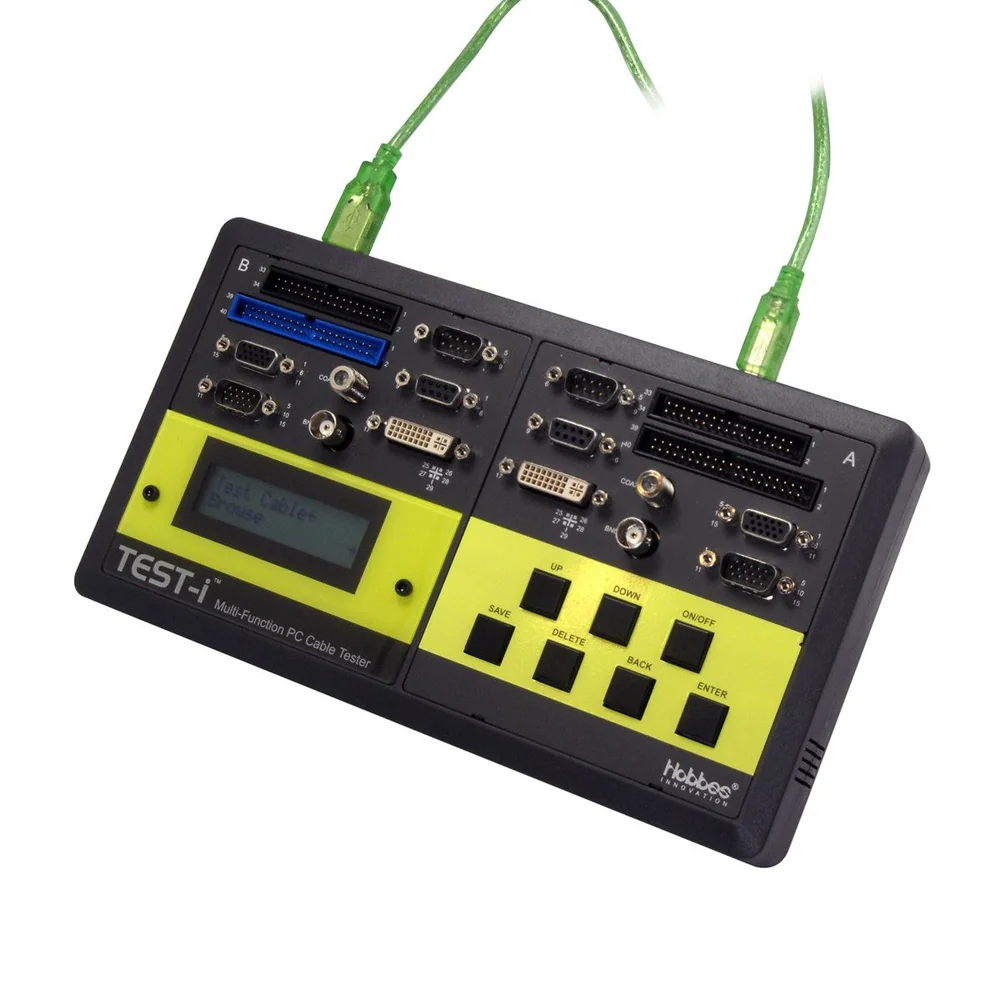

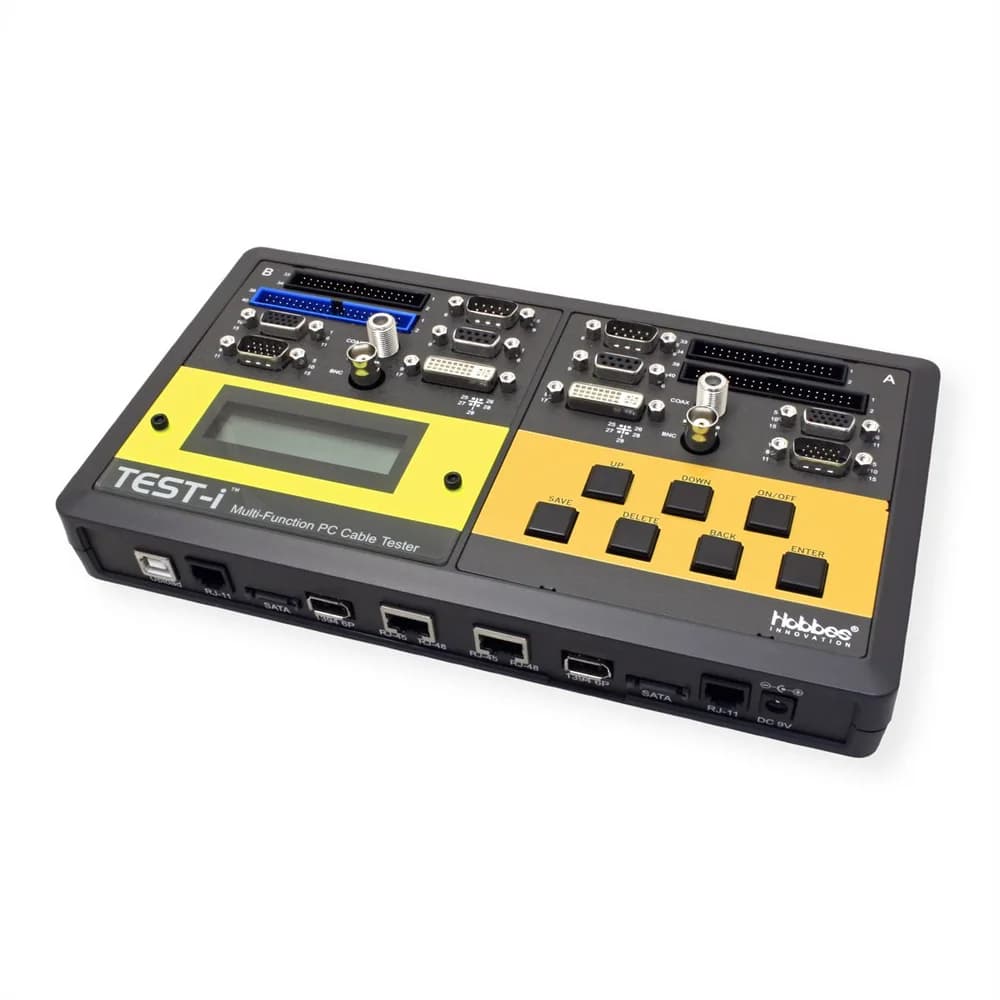

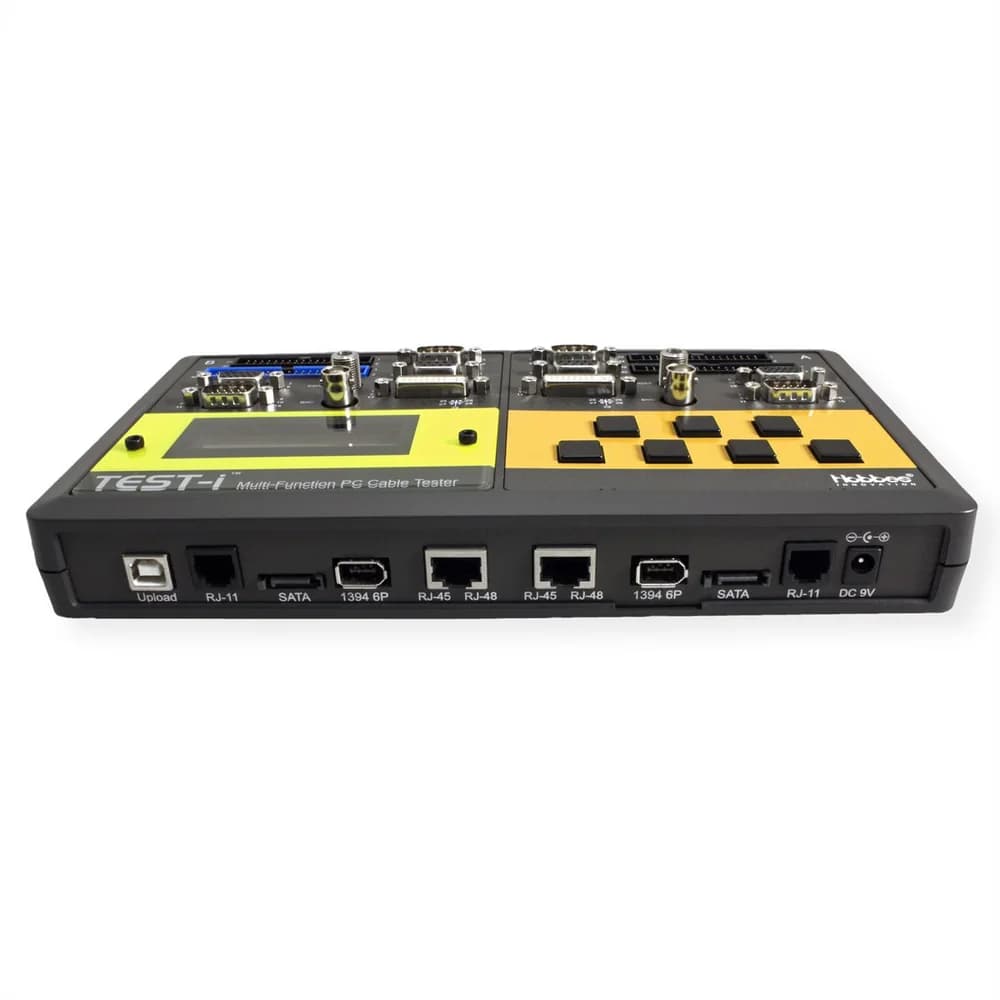

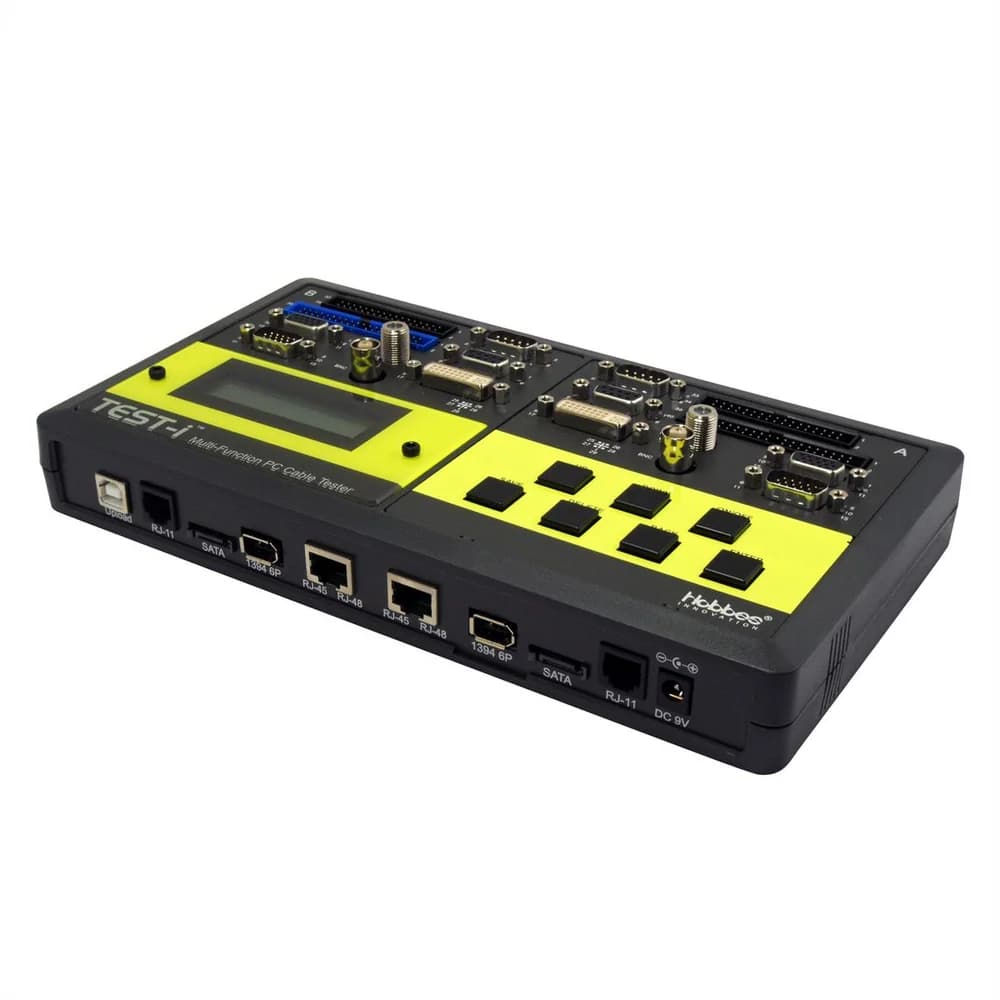

HOBBES TEST-i All-in-One cable/interface test

The third generation of PC cable tester TEST–i, a specially designed multi function cable tester that tests and analyzes a comprehensive range of PC connector types and the most commonly used flat cables.

The TEST–i not only tests each pins connection to identify opened wires, shorted wires, cross wires, and mis–wires. It also shows pin–to–pin connectivity, and can also records up to 100 test results. The crucial data collected can be saved and uploaded to a PC via USB for analysis. With an integrated LCD display (with back light function), users can clearly determine the cable pin wiring easily and efficiently. The TEST–i makes an excellent and essential tool for a system integrator to quickly troubleshoot and perform pin–to–pin test on PC cables.

• Identify opened wires, shorted wires, cross wires, and mis–wires connectivity
• Support 18 flat types of PC connectors
• 100 test results can be saved and transferred to PC via USB line
• Alphanumeric LCD display with back light
• With test cable, browse, quick test function
• Low battery indicator

SPECIFICATIONS

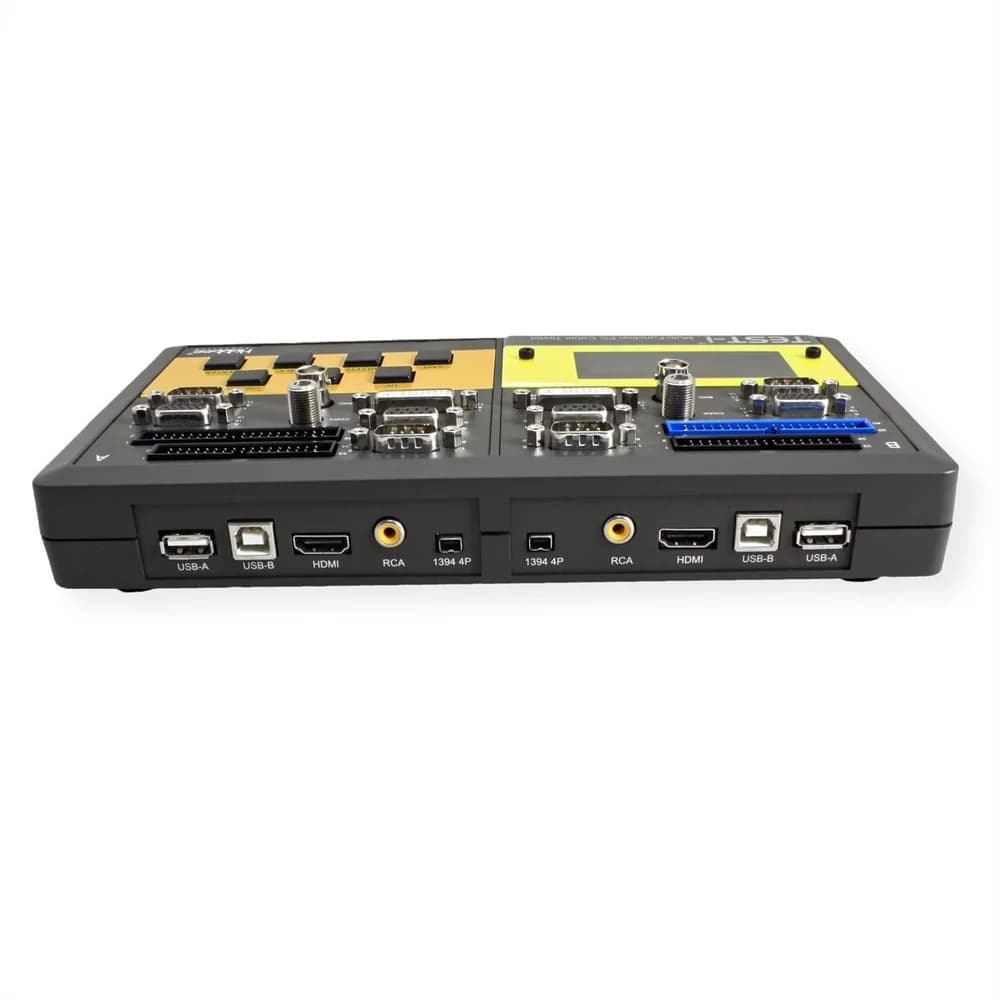

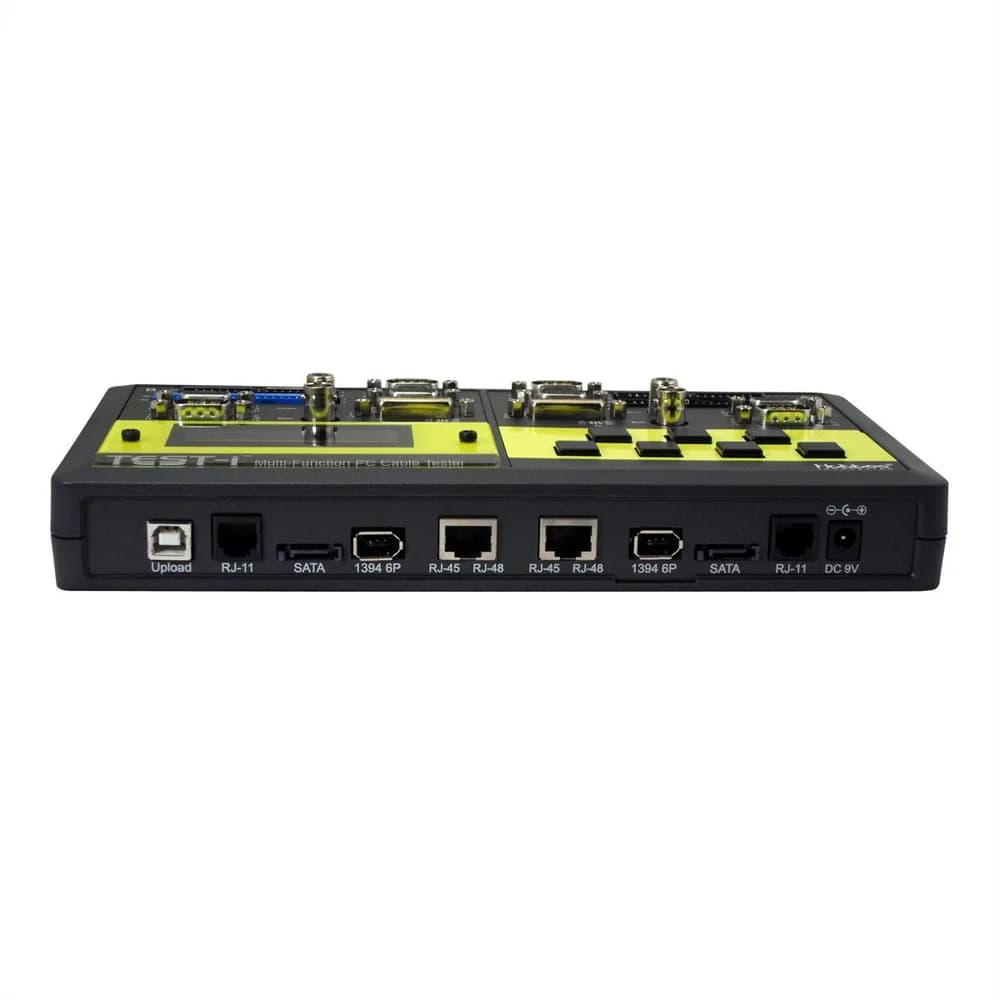

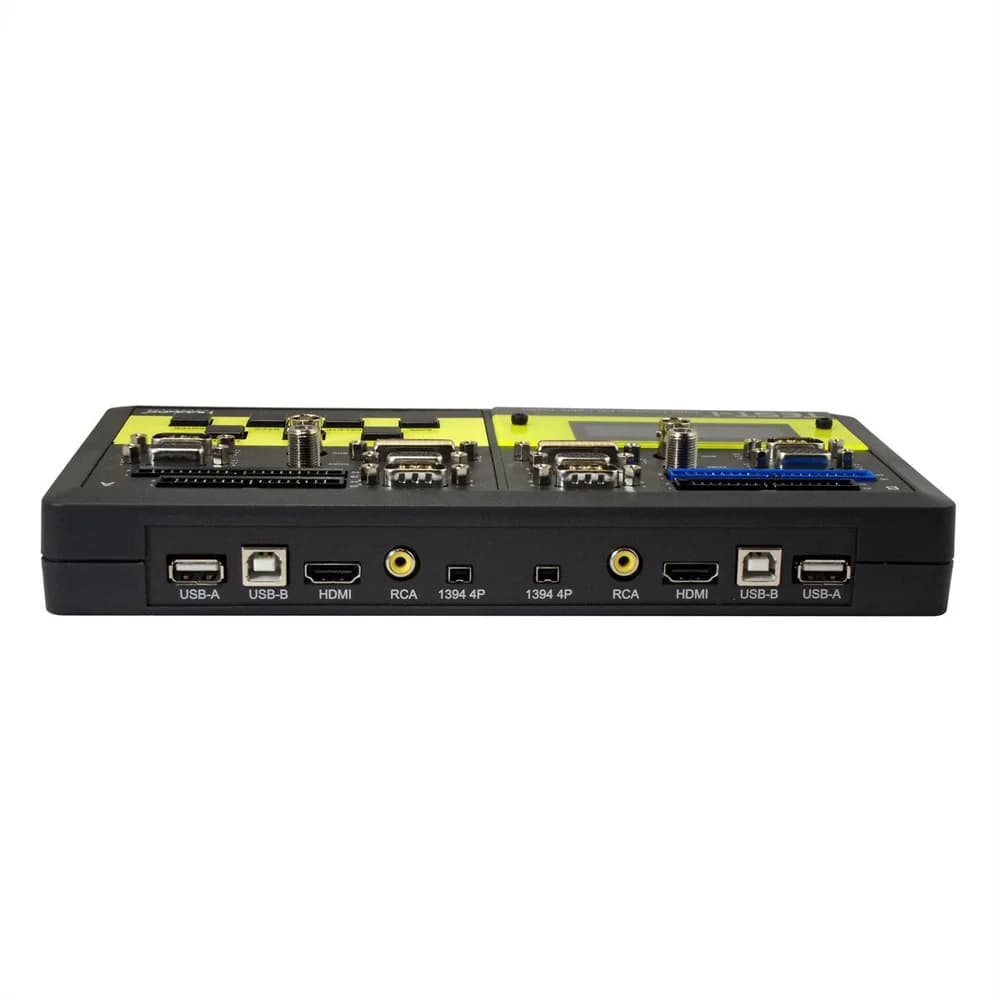

- Connectors: IDC40, IDC34, DVI29, HDB15M/F, DB9M/F, COAX, BNC, RJ-11, RJ-45, 1394-6P, 1394-4P, SATA, USB(A/B), HDMI, RCA, IDC40 to RS232

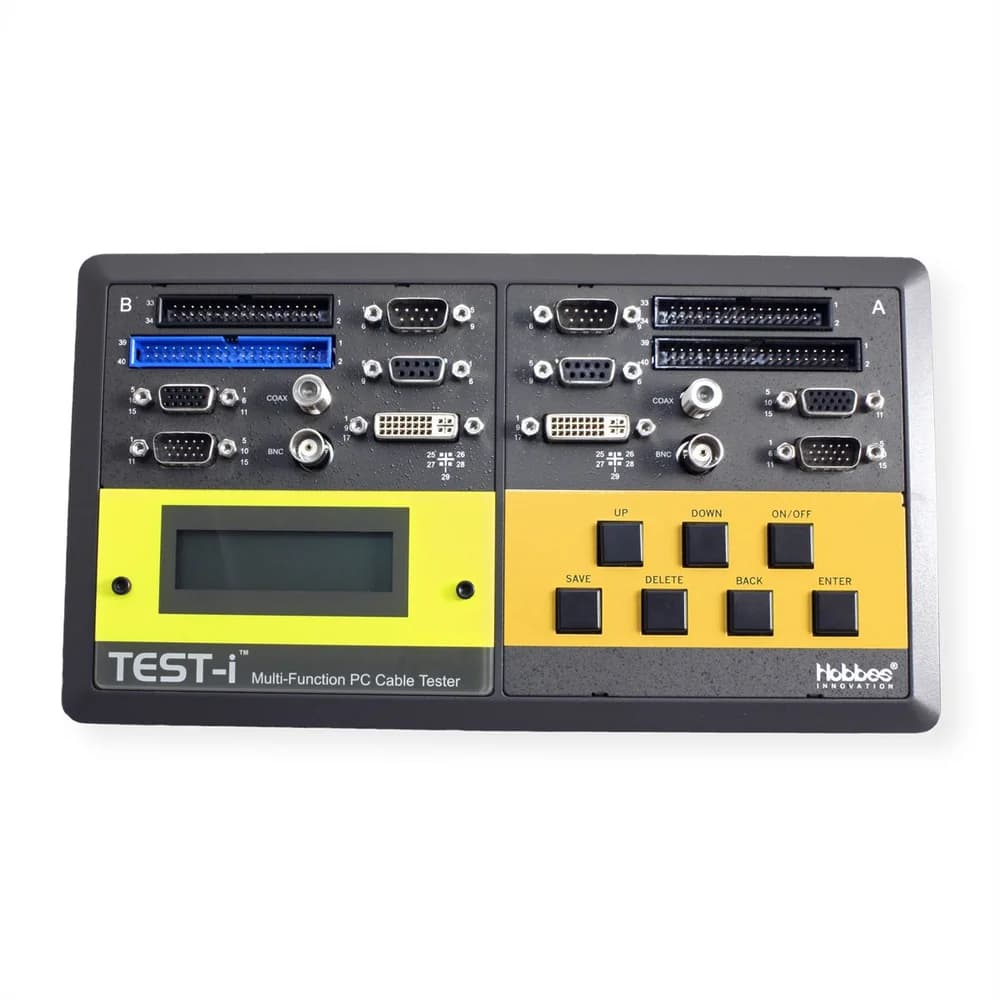

- Control switch: On/OFF, UP, DOWN, SAVE, DELETE, BACK, ENTER
- Display: LCD size, 2 rows–16 characters, back light

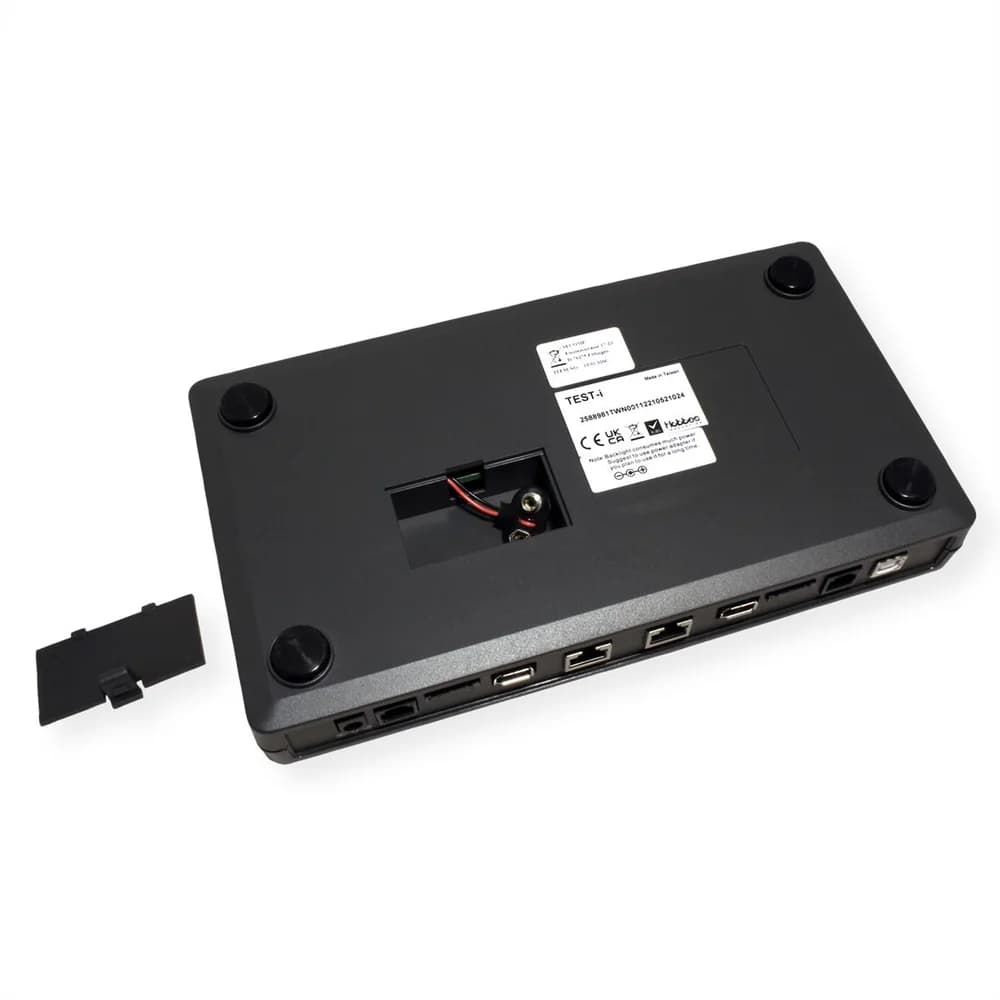

- Battery: DC 9V battery compartment, DC 9V 150mA power jack (adapter not included)
- Dimensions: 250 x 138 x 44mm
- Weight: 802.7g
